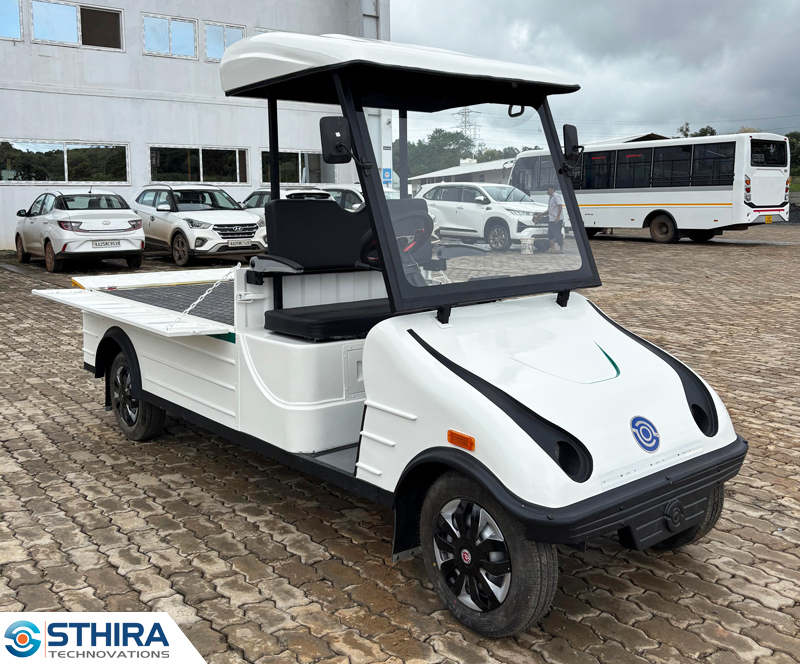

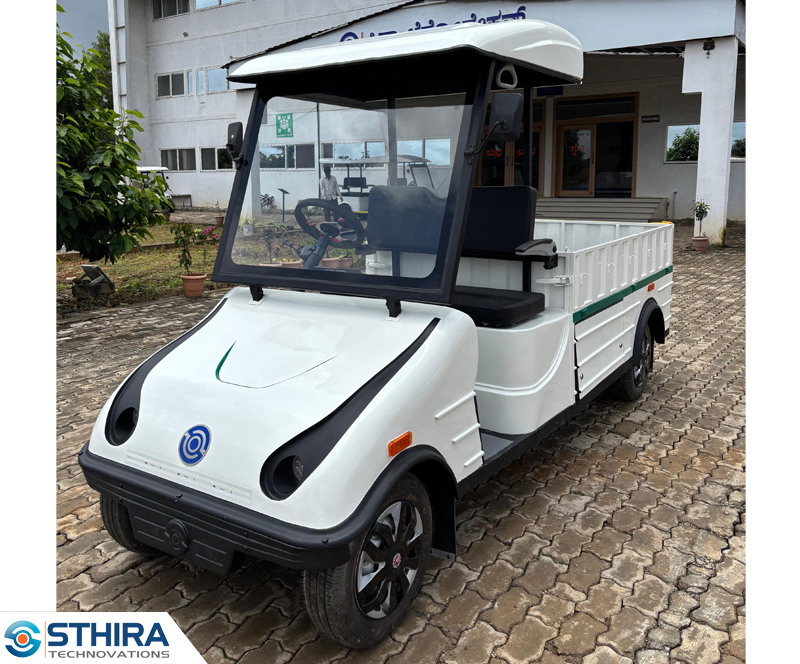

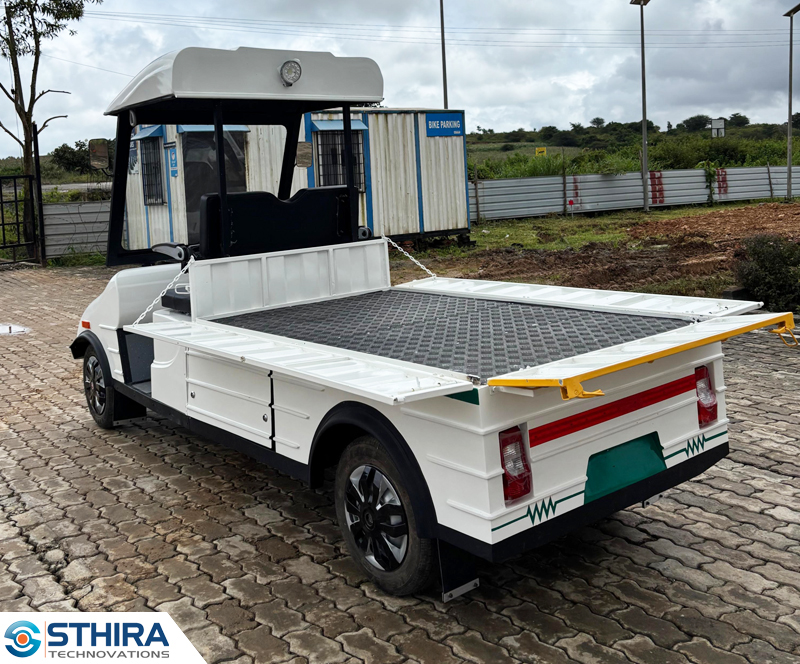

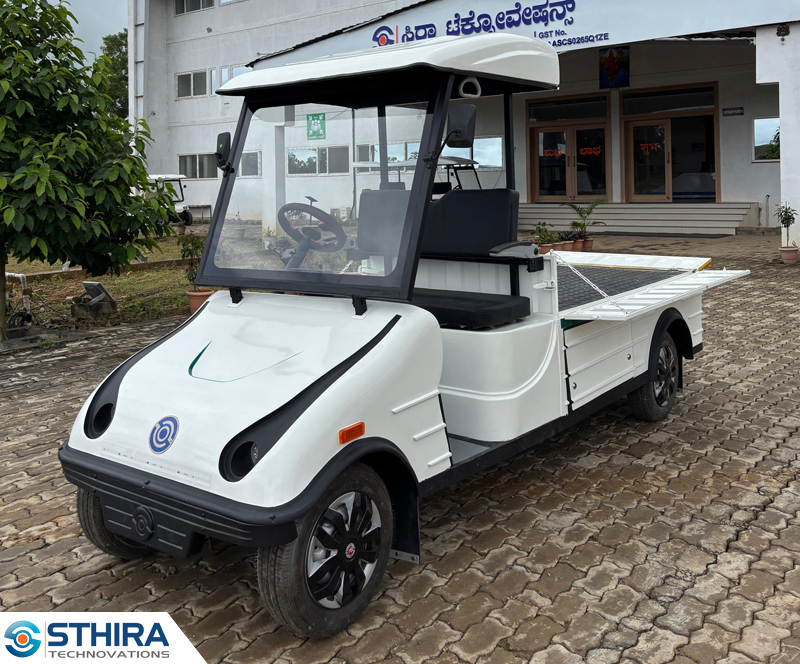

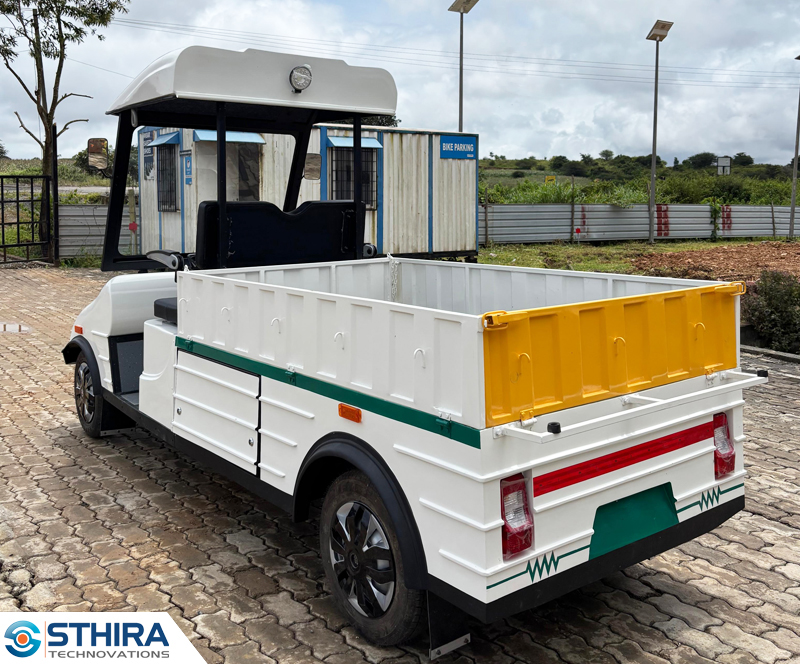

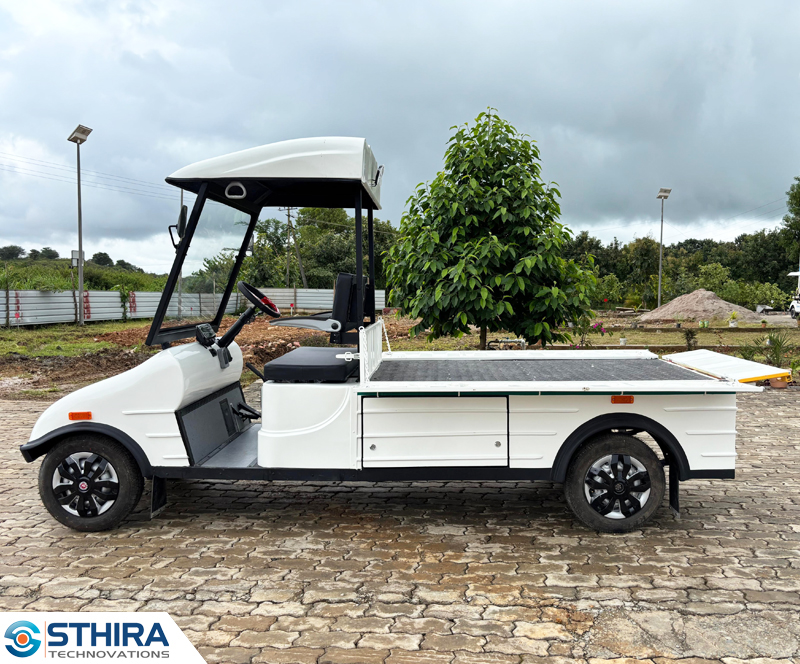

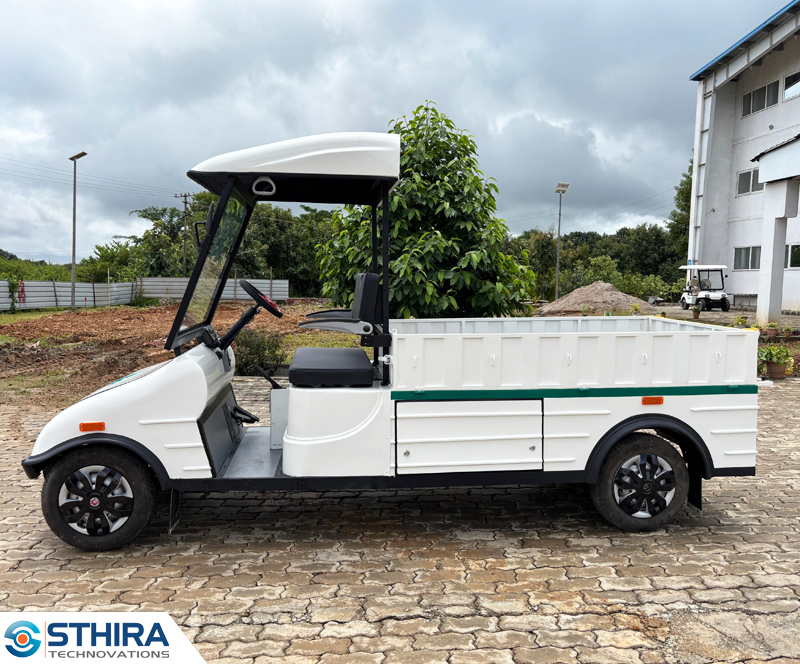

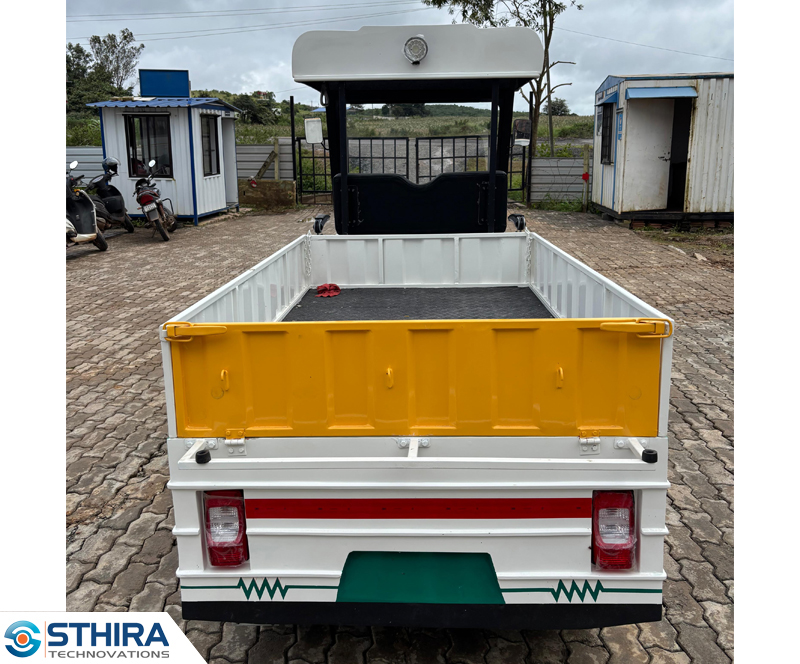

EUV – Electric Utility Vehicle

Overall Dimensions : Length 12ft x Breadth 4ft Approx
• Motor Type: PMSM Motors
• Motor Power: 3Kw
• Controller Type: 48 Controller
• Controller Power:60v 2000w
• No of Batteries:5x12V 100Ah Exide Battery
• Charging Time:6 to 7 Hrs
• Battery Type: Lead acid batteries
• Voltage Required for charger:220 VLT Single Face
• Brake Type: Hydraulic Spring Shocker
• Front Fascia: Golf cart
• Load Bearing Capacity: 800 Kg
• Cabin Space:6’10” L x 3’10”B
• Climbing Capacity:18 degree Incline
• Max Speed:22 KMPH
• Driving Distance: 50-60 km in one charge
• Turning Radius: 4800mm
• Conveter:12 volts
• Ground Clearance:240mm
